$9,099.00

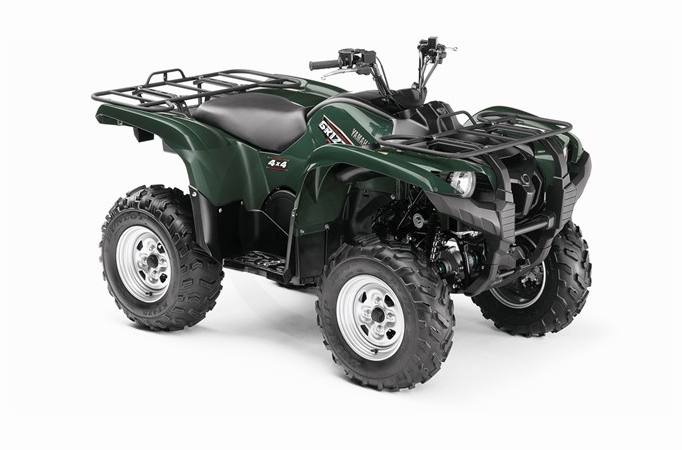

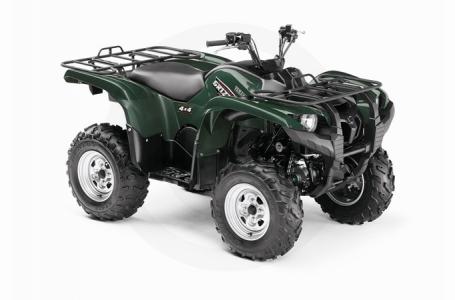

2009 Yamaha Grizzly 700 FI Auto 4x4 EPS
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Key Features
    • Most powerful Grizzly ever: 686cc liquid-cooled, four-stroke engine and light weight add up to the best power-to-weight ratio of any utility model in the industry.
    • Electronic fuel injection means instantaneous cold starts and optimal performance in all conditions and at all altitudes.
    • Industry first: Electronic Power Steering system lightens steering for superior comfort and terrainability.
    • Industry-exclusive, fully automatic Ultramatic® transmission is the most advanced drive system in ATV-ing. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and industry-exclusive all-wheel downhill engine braking.
    • Industry-exclusive, three-position On-Command® In/Out 4WD feature lets you switch between 2WD, limited-slip 4WD and fully locked differential 4WD — all with the simple push of a button.
    • Fully independent long-travel four-wheel suspension features double-wishbone suspension front and rear with five-way preload-adjustable shocks for maximum control and comfort over rough terrain. Smoothest-running and -riding Grizzly ever.
    • Trick digital instrument panel boasts a multifunction LCD display with speedometer, odometer, dual tripmeter, hourmeter, 4WD status, transmission position, clock and fuel gauge.
    Engine Features
    • Raptor-based four-valve combustion chamber design produces a potent combination of low-rev torque, right-now throttle response and high horsepower.
    • Compact engine design features a 35-degree cylinder angle for ground clearance and lower seat height for quick steering and maneuverability.
    • Electronic fuel injection provides a perfect fuel/air mixture regardless of temperature or altitude, and makes cold starts a snap.
    • Gear-driven crankshaft balancer shaft and new-design rubber-damper engine mounts reduce vibration.
    • Ceramic-composite cylinder liners provide outstanding durability and heat dissipation; forged piston is light and strong and rides a carburized, chrome-moly connecting rod.
    • Two-lobe overhead cam and a pair of needle-roller rocker arms reduce friction by 50 percent for increased fuel efficiency and torque.
    • Mikuni® fuel injection with 44mm bore and throttle position sensor means easy cold starts and flawless fuel delivery in nearly any condition.
    • Pushbutton electric start with seven-disk torque-limiting damper assembly protects the starter motor.
    • Straight driveshaft layout eliminates U-joints for reduced friction, vibration and maintenance.
    • Stainless steel exhaust system features aluminum heat shields and a screen-type spark arrestor for great power with minimum noise output.
    • High-capacity aluminum radiator with fan-assist delivers maximum cooling efficiency and is positioned high in the frame for optimal protection.
    • Automatic cam chain tensioner reduces engine maintenance and helps extend engine life.
    • Five-position shift lever with H, L, N, R and P gates provides positive Ultramatic transmission operation.
    • Override button allows engine to make maximum rpm in full Diff Lock mode.
    • Electronic servo-activated 2WD/4WD/Diff Lock via the On-Command® system.
    • Sealed drive case keeps out water and debris to help prevent belt from slipping.
    Chassis/Suspension Features
    • Comfortable chassis provides outstanding handling and maneuverability.
    • Lay-down-style front suspension A-arms provide outstanding ground clearance.
    • Five-way preload-adjustable shocks provide a controlled, comfortable ride, whatever the load or trail conditions.
    • Four-wheel hydraulic disc brakes serve up consistent, long-lasting braking power under all sorts of nasty conditions.
    • Electronic power steering varies assist according to speed and rpm for increased comfort and incredible maneuverability—even in 4WD.
    • 5.3-gallon fuel tank is located under the seat for excellent mass centralization and handling; there’s a 4.8-liter waterproof storage compartment under there, too.
    • 11.8 inches of ground clearance and full-length composite skidplate deliver maximum underbelly protection while enhancing terrainability.
    • 25x8-12 front and 25x10-12 rear Dunlop® tires provide responsive steering and handling and excellent comfort.
    • Rugged injection-molded front bumper and CV joint guards protect against rock and debris damage.
    Additional Features
    • LCD instrument display contains fuel injection and electronic power steering information, as well as bar-type fuel gauge, odometer, trip meter, clock and Diff Lock indicator.
    • An analog speedometer shows your velocity at a glance.
    • Rugged steel cargo racks with special, extra-durable wrinkle paint finish can pack a total of 286 pounds combined (99 front, 187 rear).
    • Center-mounted, heavy-duty trailer hitch comes standard and can tow more than 1200 pounds.
    • Large, specially designed seat is extra plush and widely contoured for all-day rider comfort.
    • Dual 35-watt multi-reflector halogen bulb headlights with high/low beams light up the night.
    Engine Specifications
    • Type: 686cc, 4-stroke, liquid-cooled single; SOHC, 4 valves
    • Bore x Stroke: 102.0mm x 84.0mm
    • Compression Ratio: 9.2:1
    • Carburetion: Yamaha Fuel Injection (YFI), 44mm
    • Ignition: 32 Bit ECU
    • Starting System: Electric
    • Transmission: Yamaha Ultramatic® V-belt with all-wheel engine braking/H, L, N, R, P
    • Drive Train: Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive
    Chassis Specifications
    • Suspension/Front: Independent double wishbone; 5-way preload adjustment, 7.1-in travel
    • Suspension/Rear: Independent double wishbone; 5-way preload adjustment, 9.5-in travel
    • Brakes/Front: Dual hydraulic disc
    • Brakes/Rear: Dual hydraulic disc
    • Tires/Front: AT25 x 8-12 w/aluminum wheels
    • Tires/Rear: AT25 x 10-12 w/aluminum wheels
    Dimensions
    • L x W x H: 81.3 x 46.5 x 48.8 in
    • Seat Height: 35.6 in
    • Wheelbase: 49.2 in
    • Turning Radius: 126 in
    • Ground Clearance: 11.8 in
    • Fuel Capacity: 5.3 gal
    • Dry Weight: 600 lb
    • Rack Capacity: 99 lb Fr./ 187 lb Rr.
    • Towing Capacity: 1322 lb
    Other
    • Instrumentation: Digital LCD multifunction display: speedometer, odometer, dual tripmeter, hourmeter, clock, fuel gauge, gear position, EPS and EFI function
    • Lighting: Dual 35W Halogen multi-reflector headlights & 21W/5W brakelight
    • Colors: Steel Blue, Hunter Green, Black Metalic

    Specifications

    Engine
    Engine Type 4-stroke, liquid-cooled single; SOHC, 4 valves
    Displacement 686 cc
    Bore x Stroke 102.0 x 84.0 mm
    Engine Cooling Liquid
    Fuel System Yamaha Fuel Injection (YFI), 44 mm
    Starting System Electric
    Chassis
    Front Suspension Independent double wishbone; 5-way preload adjustment
    Front Travel 7.1 in.
    Front Brake Type Dual hydraulic disc
    Front Tires AT25 x 8-12 w/aluminum wheels
    Rear Travel 9.5 in.
    Rear Suspension Independent double wishbone; 5-way preload adjustment
    Rear Brake Type Dual hydraulic disc
    Rear Tires AT25 x 10-12 w/aluminum wheels
    Dimensions/Capacities
    Dry Weight 600 lbs
    Front Rack Capacity 99 lbs
    Rear Rack Capacity 187 lbs
    Towing Capacity 1322 lbs
    Fuel Capacity 5.3 gal
    Ground Clearance 11.8 in.
    Machine Dimensions (LxWxH) 81.3 x 46.5 x 48.8 in.
    Wheelbase 49.2 in.
    Drive Train
    Drive Train Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive
    Transmission Yamaha Ultramatic® V-belt with all-wheel engine braking/H, L, N, R, P
    General
    Speedometer Analog
    Odometer Digital LCD
    Lighting Dual 35W Halogen multi-reflector headlights & 21W/5W brakelight
    Colors Steel Blue, Hunter Green, Black Metalic

    Compare Models

    		 Print








    Year 2009
    Manufacturer Yamaha
    Model Grizzly 700 FI Auto 4x4 EPS
    Style Utility
    MSRP* $9,099.00
    Chassis
    Front Suspension Independent double wishbone; 5-way preload adjustment
    Front Travel 7.1 in.
    Front Brake Type Dual hydraulic disc
    Front Tires AT25 x 8-12 w/aluminum wheels
    Rear Suspension Independent double wishbone; 5-way preload adjustment
    Rear Travel 9.5 in.
    Rear Brake Type Dual hydraulic disc
    Rear Tires AT25 x 10-12 w/aluminum wheels
    Frame
    Dimensions/Capacities
    Dry Weight 600 lbs
    Front Rack Capacity 99 lbs
    Rear Rack Capacity 187 lbs
    Towing Capacity 1322 lbs
    Fuel Capacity 5.3 gal
    Ground Clearance 11.8 in.
    Machine Dimensions (LxWxH) 81.3 x 46.5 x 48.8 in.
    Wheelbase 49.2 in.
    Drive Train
    Drive Train Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive
    Final Drive
    Transmission Yamaha Ultramatic® V-belt with all-wheel engine braking/H, L, N, R, P
    Engine
    Engine Type 4-stroke, liquid-cooled single; SOHC, 4 valves
    Displacement 686 cc
    Bore x Stroke 102.0 x 84.0 mm
    Cylinders
    Engine Cooling Liquid
    Fuel System Yamaha Fuel Injection (YFI), 44 mm
    Starting System Electric
    Alternator
    General
    Speedometer Analog
    Tachometer
    Odometer Digital LCD
    Lighting Dual 35W Halogen multi-reflector headlights & 21W/5W brakelight
    Colors Steel Blue, Hunter Green, Black Metalic
